Processing metal ores profitably requires the right equipment at every stage. One mismatched machine in your circuit can bottleneck the entire operation, eating into margins through excessive energy consumption, poor recovery rates, or unplanned downtime. This guide walks through the key equipment categories that make up a modern metal ore processing plant and what to look for when specifying machinery for your project.
Why Equipment Selection Determines Plant Profitability
Before examining individual machines, it is worth understanding the stakes. In a typical metal mine, comminution — crushing and grinding — accounts for 50 to 70 percent of total energy consumption. Beneficiation efficiency directly dictates how much valuable metal you recover from each ton of ore. A difference of just 2 to 3 percentage points in recovery rate can translate into millions of dollars in annual revenue for a mid-sized operation. Equipment selection is not simply a procurement exercise; it is the single most consequential technical decision in plant design.
Stage One: Grinding — Where Value Is Unlocked
After primary and secondary crushing, the ore enters the grinding circuit. The goal here is mineral liberation: reducing particle size until valuable mineral grains are physically separated from the surrounding waste rock. Without adequate liberation, downstream separation processes cannot achieve target grades or recoveries.
Selecting the Right Grinding Mill

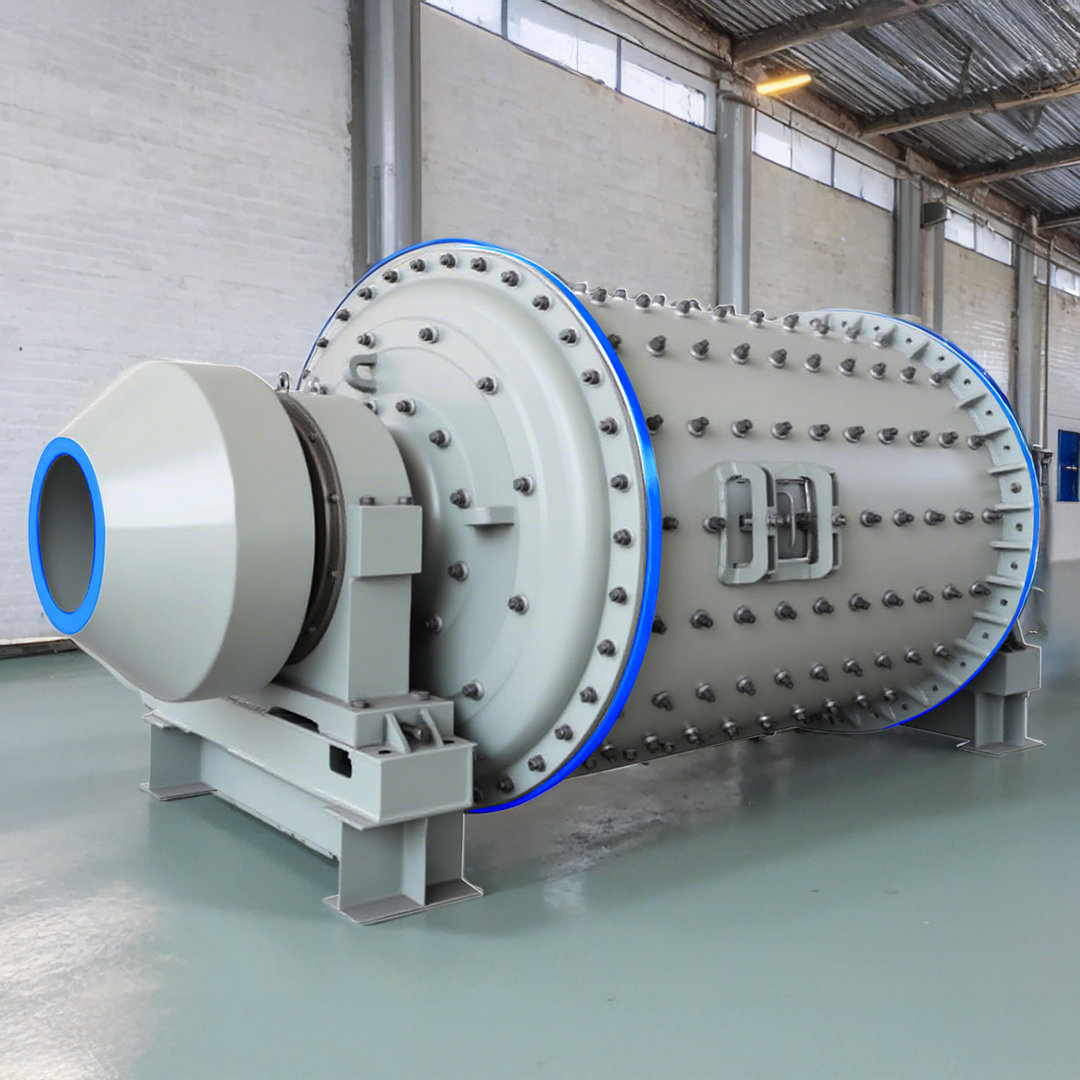

Ball mills remain the workhorse of the industry. Inside a rotating cylindrical shell, steel balls cascade onto the ore feed, breaking particles through impact and attrition. Two discharge configurations dominate:
- Grate discharge mills force material through a grate at the discharge end, producing a product with relatively coarse particle size distribution. These are preferred for primary grinding ahead of gravity or magnetic separation circuits where over-grinding would reduce recovery.
- Overflow discharge mills allow ground slurry to spill over a weir, naturally retaining material longer and producing finer products. Overflow mills suit regrind applications and circuits feeding flotation where fine liberation is critical.
For brittle ores — tungsten, tin, and certain non-metallics — rod mills offer an alternative. Steel rods grind by rolling and sliding contact rather than point impact, producing a narrow particle size distribution with minimal fines generation. This prevents the loss of valuable brittle minerals into slimes that are difficult to recover.
Closing the Circuit: Classification
A grinding mill rarely operates alone. Paired with a classifier in a closed circuit, the combination continuously removes particles that have reached the target size while returning oversize to the mill for further reduction. The choice of classifier depends on scale and application:
- Spiral classifiers are mechanically simple, reliable, and well-suited to medium-throughput plants. Their gradual, visible separation process makes them easy to monitor and adjust. They work best with relatively coarse cut points above 100 mesh (150 microns).
- Hydrocyclones dominate high-tonnage modern plants. Using centrifugal force generated by tangential feed entry, they achieve sharp size separations in a compact footprint. They handle fine cut points down to 10 microns and respond well to automated control through variable pump speed and apex diameter adjustment.
Stage Two: Separation — Where Grade and Recovery Converge
Once ore is ground to the liberation size, the separation circuit must discriminate between valuable mineral particles and gangue. Three distinct technologies address three different mineral property differences.
Flotation: Chemistry-Driven Separation
When mineral surfaces differ in their affinity for water — hydrophobicity versus hydrophilicity — flotation is the answer. This technology processes the majority of the world's copper, lead, zinc, nickel, and molybdenum.

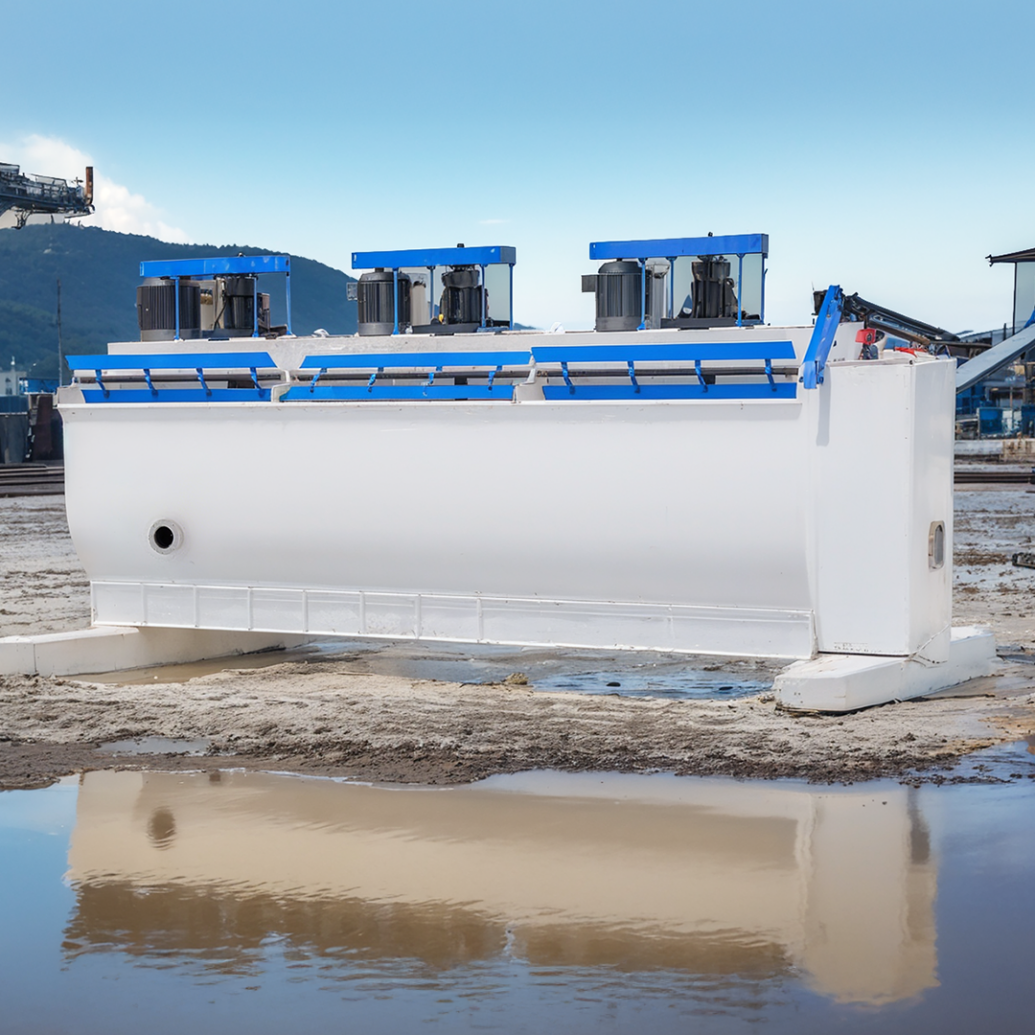

In a flotation cell, air is introduced into a conditioned slurry containing chemical reagents. Collector chemicals selectively coat target mineral particles, rendering them hydrophobic. Frother chemicals stabilize the bubble froth at the pulp surface. Hydrophobic particles attach to rising air bubbles and report to the froth layer for collection as concentrate; hydrophilic gangue particles remain in the pulp and exit as tailings.
Key specification considerations for flotation cells include aeration rate, impeller design, and tank geometry. Modern large-volume cells exceeding 100 cubic meters enable fewer units, simpler piping, and lower capital cost per ton of throughput.
Magnetic Separation: Exploiting Magnetic Susceptibility
For iron ores — particularly magnetite — and for removing tramp iron from non-magnetic process streams, magnetic separators offer clean, reagent-free separation.
Low-intensity magnetic separators (LIMS) with field strengths under 2,000 Gauss recover strongly magnetic minerals like magnetite. High-intensity magnetic separators (HIMS) reaching 15,000 Gauss or more can separate weakly paramagnetic minerals including hematite, ilmenite, and chromite. Wet drum configurations suit fine feeds; dry drum and roll configurations serve coarse or dry processing applications.
Gravity Separation: Density-Based Concentration
Where valuable minerals differ significantly in density from gangue — think gold at 19.3 g/cm³ versus quartz at 2.65 g/cm³ — gravity methods offer compelling advantages: zero reagent cost, minimal environmental impact, and straightforward operation.

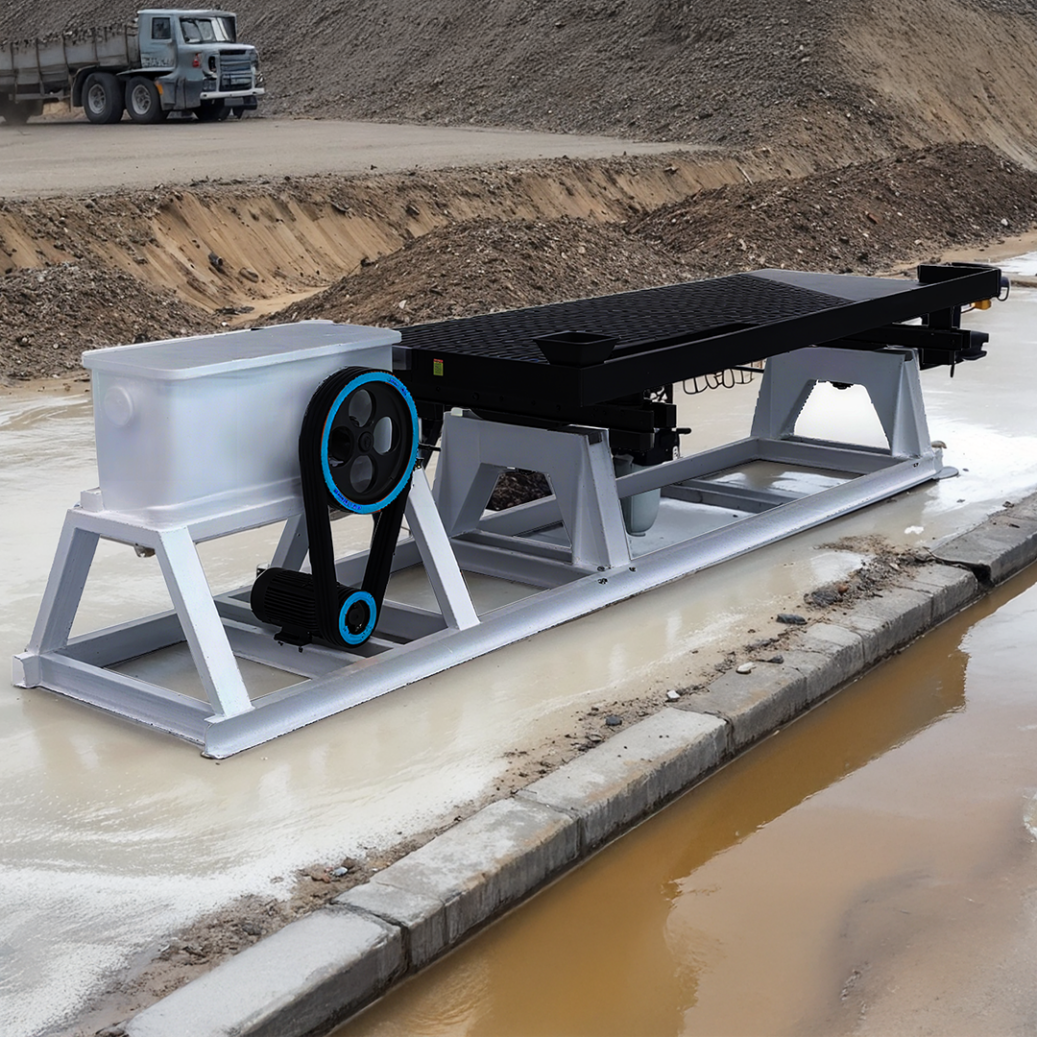

Shaking tables achieve the highest concentration ratios among gravity devices. A ribbed deck oscillates asymmetrically while cross-flow wash water carries lighter particles across the riffles. Heavy mineral particles trapped behind riffles travel longitudinally to a concentrate discharge port. Enrichment ratios of 20:1 to 100:1 are achievable on feed sizes from 2 mm down to 20 microns. This makes shaking tables indispensable for fine gold, tungsten, tin, and tantalum recovery — and increasingly for scavenging valuable minerals from tailings impoundments.
Spiral concentrators process large volumes at low operating cost with no moving parts and no power requirement. Slurry fed to the top of a helical trough stratifies under centrifugal and gravitational forces, with heavy minerals concentrating in a band near the central column. Spirals excel in roughing and scavenging applications treating feeds between 0.1 and 2 mm.
Jigs pulse water through a bed of ore particles supported on a screen, causing repeated dilation and compaction. Heavier particles penetrate the bed during each dilation cycle and are drawn off as concentrate. Jigs handle the coarsest feeds — up to 25 mm — making them ideal for primary gravity concentration ahead of milling.
The Case for Integrated EPC Delivery
Sourcing individual machines from multiple suppliers introduces risks: interface mismatches, divided warranty responsibility, and extended commissioning timelines during which each supplier's technicians may point fingers at another's equipment. An integrated Engineering, Procurement, and Construction (EPC) approach consolidates accountability under a single contract.
Under the EPC model, a single team handles process flow design, equipment specification, manufacturing, logistics, civil works, structural and mechanical installation, electrical and control integration, and cold and hot commissioning. The plant is handed over as a functioning system, not a collection of parts. This approach typically reduces project duration by 20 to 30 percent compared to multi-vendor procurement and eliminates the coordination overhead that burdens mine owners.
What to Look for in an Equipment Partner
Selecting equipment is one decision. Selecting a long-term partner is another. Consider these factors:
- Manufacturing scale and quality systems. A partner with vertically integrated production — casting, machining, assembly, and testing under one roof — exercises greater quality control than one relying on outsourced fabrication. Look for ISO-certified quality management and in-house metallurgical laboratories.
- Process engineering depth. The best equipment suppliers bring process engineering expertise that goes beyond machine specifications. They should be capable of flowsheet development, mass balance calculations, and equipment sizing based on ore characterization test work.
- References and installed base. Proven performance at operating mines with ore characteristics similar to yours reduces project risk. Ask for reference sites and, where possible, visit them.
- After-sales infrastructure. Spare parts availability, technical support response time, and the willingness to provide on-site troubleshooting distinguish a transactional vendor from a genuine partner.
